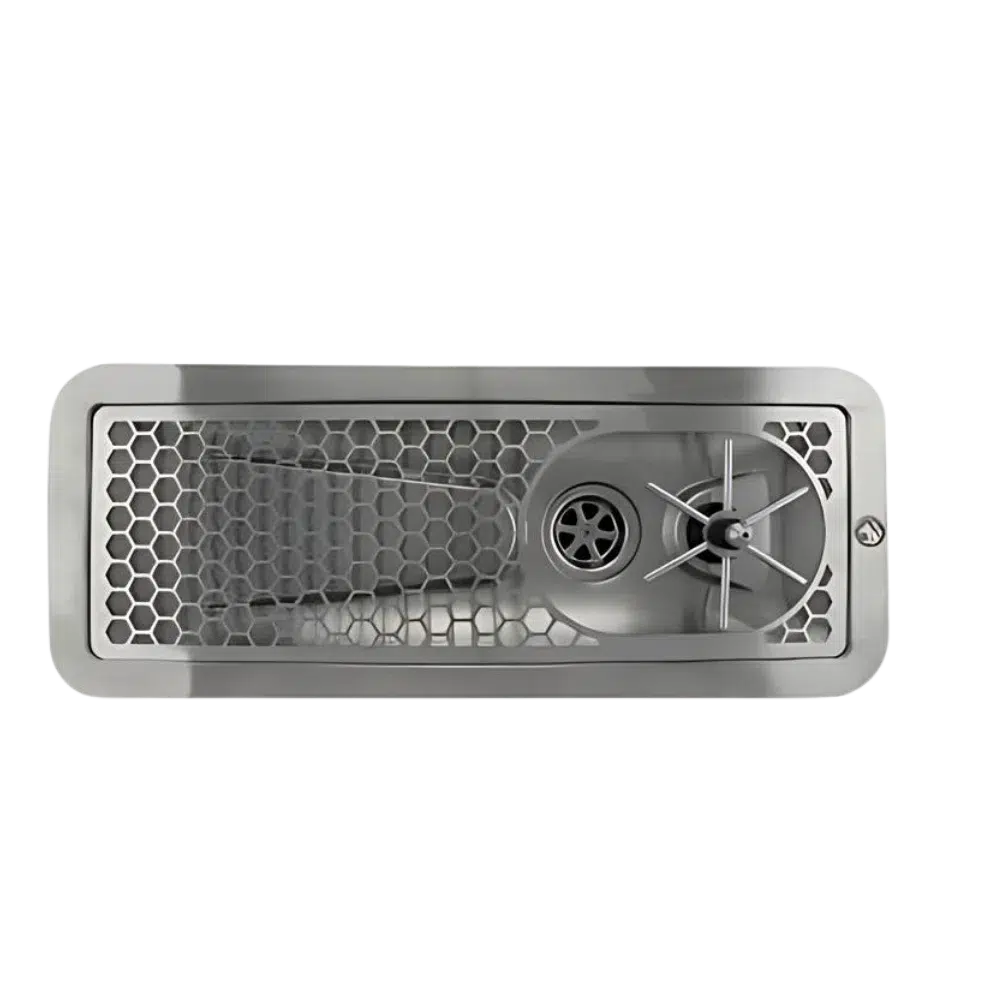

Rhino Coffee Gear 600mm Recessed Pitcher Rinser

The Rhino Coffee Gear 600mm Recessed Pitcher Rinser is the large-format version of Rhino's recessed rinser range, built for high-volume cafés, coffee bars, restaurants, and juice bars where multiple pitchers need to be rinsed quickly and simultaneously throughout service. At 600mm long, it comfortably accommodates several milk pitchers at once — the practical choice for twin-group espresso machines, bars running multiple stations, or any environment where rinsing speed is a genuine bottleneck.

Installed flush into the countertop, it gives baristas an always-on rinsing point directly at the station. There are no trips to the sink, no workflow breaks, and no milk residue building up in pitchers between drinks.

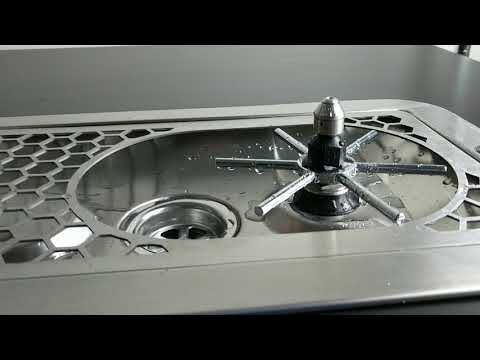

Spinjet Valve — Spray and Spin Simultaneously

The same Spinjet valve technology used in the 300mm rinser drives cleaning performance here. The valve sprays and spins water simultaneously, creating a rotational mechanical cleaning action that removes milk residue, coffee grounds, and stubborn beverage build-up far more effectively than conventional single-direction spray valves. The Actuator Star design handles both small and large vessels comfortably, and an optional Blender Adapter Kit extends compatibility to blender jugs and larger vessels including Blendtec and Vitamix jugs.

Pitcher Cooling — Better Milk, Better Latte Art

A less-obvious but valuable benefit: the cold water rinse cools the pitcher between uses. A cooler pitcher gives baristas more time to steam and work the milk before it overheats, which directly translates to better milk texture and more consistent latte art. This is a practical workflow advantage that goes beyond hygiene alone.

Honeycomb Drain Tray and Sloped Body

The honeycomb grate minimises the surface area in contact with liquid, reducing static build-up and the odour that comes with stagnant residue in flat-bottomed rinsers. The body is optimally sloped toward the drain for fast, efficient liquid removal, and a wide grate-free drain opening handles larger volumes quickly — important at the volume this rinser is designed for.

NSF Certified, 304 Stainless Steel

Constructed from 304 stainless steel with a brushed finish body and polished rinser mechanism, the 600mm rinser is NSF certified to NSF/ANSI 169 for commercial food service environments. Rounded corners and no sharp edges make it safe to work around during service.

Installation Requirements

This is a recessed in-bench installation requiring a countertop cutout. A cutout template is downloadable . Key installation notes:

• Dimensions (approx): 238mm wide x 600mm long x 85mm deep (depth from drain elbow to top of bench)
• At least 150mm of clearance under the bench is required for connections
• Maximum operating pressure: 2.4 bar (35 psi) — a Pressure Limiting Valve is recommended when connecting to mains water
• Drain hose: 25mm (1") size — not included
• Flow rate: approximately 120 litres per hour
• Tubing and adapters are not included

Frequently Asked Questions

What is the difference between the 300mm and 600mm pitcher rinser?

The core technology — Spinjet valve, honeycomb drain tray, Actuator Star design, NSF certification, and 304 stainless steel construction — is identical across both models. The difference is length and capacity. The 300mm (approximately 12") rinser suits single-group machines and lower-volume setups where one or two pitchers need rinsing at a time. The 600mm (approximately 24") is designed for higher-volume environments, twin-group machines, or multi-barista bars where several pitchers need to be rinsed simultaneously without queuing at the rinser.

Does it include plumbing fittings and tubing?

No — tubing and adapters are not included and must be sourced separately. A Rhino Pitcher Rinser Install Kit is available and includes the fittings required for connection. It is strongly recommended to have the physical rinser in hand before cutting into the benchtop, as manufacturing dimensions can vary slightly.

What are the installation requirements?

The rinser requires an in-bench cutout based on the provided template (downloadable from the product page). At least 150mm of under-bench clearance is needed for drain hose connection and fittings. A Pressure Limiting Valve is recommended when connecting to mains water to stay within the 2.4 bar (35 psi) maximum operating pressure. The drain hose is 25mm (1") in diameter.

Why does rinsing the pitcher in cold water improve milk quality?

Cooling the pitcher between uses gives the barista more time to steam the milk before it reaches temperature and overheats. A warmer starting pitcher reaches the optimal steaming temperature faster, leaving less margin for error. A cooled pitcher slows that process slightly, making it easier to develop smooth, velvety microfoam consistently — which has a direct impact on latte art and milk texture.

Is it NSF certified?

Yes. All Rhino Coffee Gear pitcher rinsers are NSF certified to NSF/ANSI 169 — Special Purpose Food Equipment and Devices — confirming compliance with food service hygiene standards for commercial use.

What vessels can be rinsed with the 600mm rinser?

Milk pitchers, keep cups, jugs, and similarly-shaped vessels used in coffee and beverage service can all be rinsed directly. For larger vessels such as blender jugs, milkshake cups, or Blendtec and Vitamix jugs, the optional Blender Adapter Kit provides an extended rod and larger actuator plate.
